Cornucopia

Project details

Programme
Research Cluster RC5/6

This project considers the undervalued resource of used, waste, and off-cut wood as a new language for discrete architectural components. Instead of downcycling useful timber, this project considers the possibility of tapping into this large waste resource to keep more timber products in use.


Off-cuts are categorised by sectional dimensions and then modularised to set lengths. These modules are then packed and reconfigured into digital voxel sets and are aggregated using the Wave Function Collapse algorithm to create larger, specific formations of the timber off-cuts, joined by folded metal connectors for assembly and reconfiguration.


WFC is used as a constraint programming algorithm to solve 3D combinatorial problems. Voxels are categorised for placement by design typology. By limiting and constraining the allowable aggregation of the voxel types according to specific design parameters, a spatial language is developed which explores the potential for this waste product to become a useful and beautiful building material at multiple scales.

01

Material Resources

Recycling waste wood of various qualities.

Material Selection

Precise measurements of recycled timber in different sizes.

Zoom Image
Close

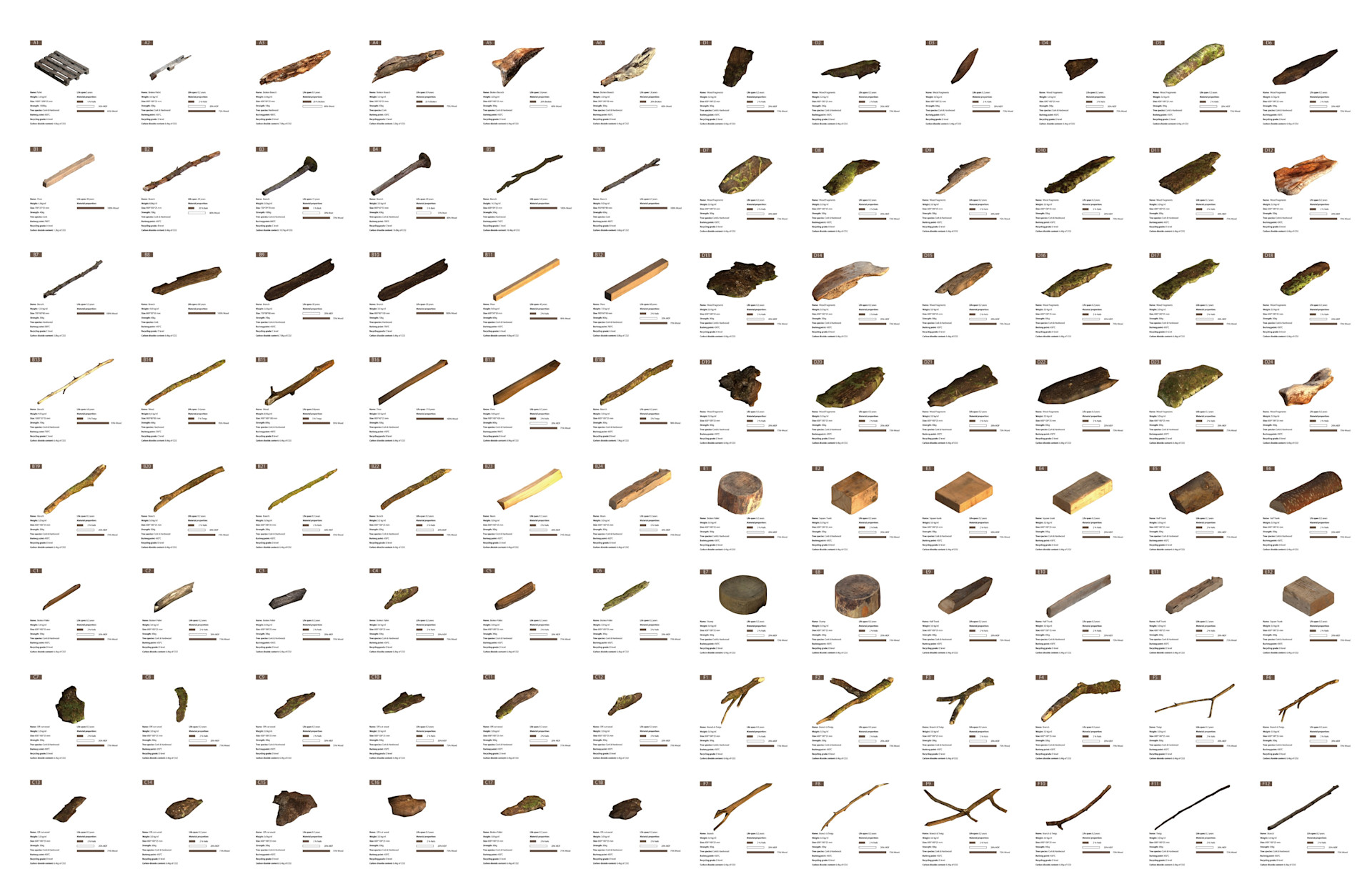

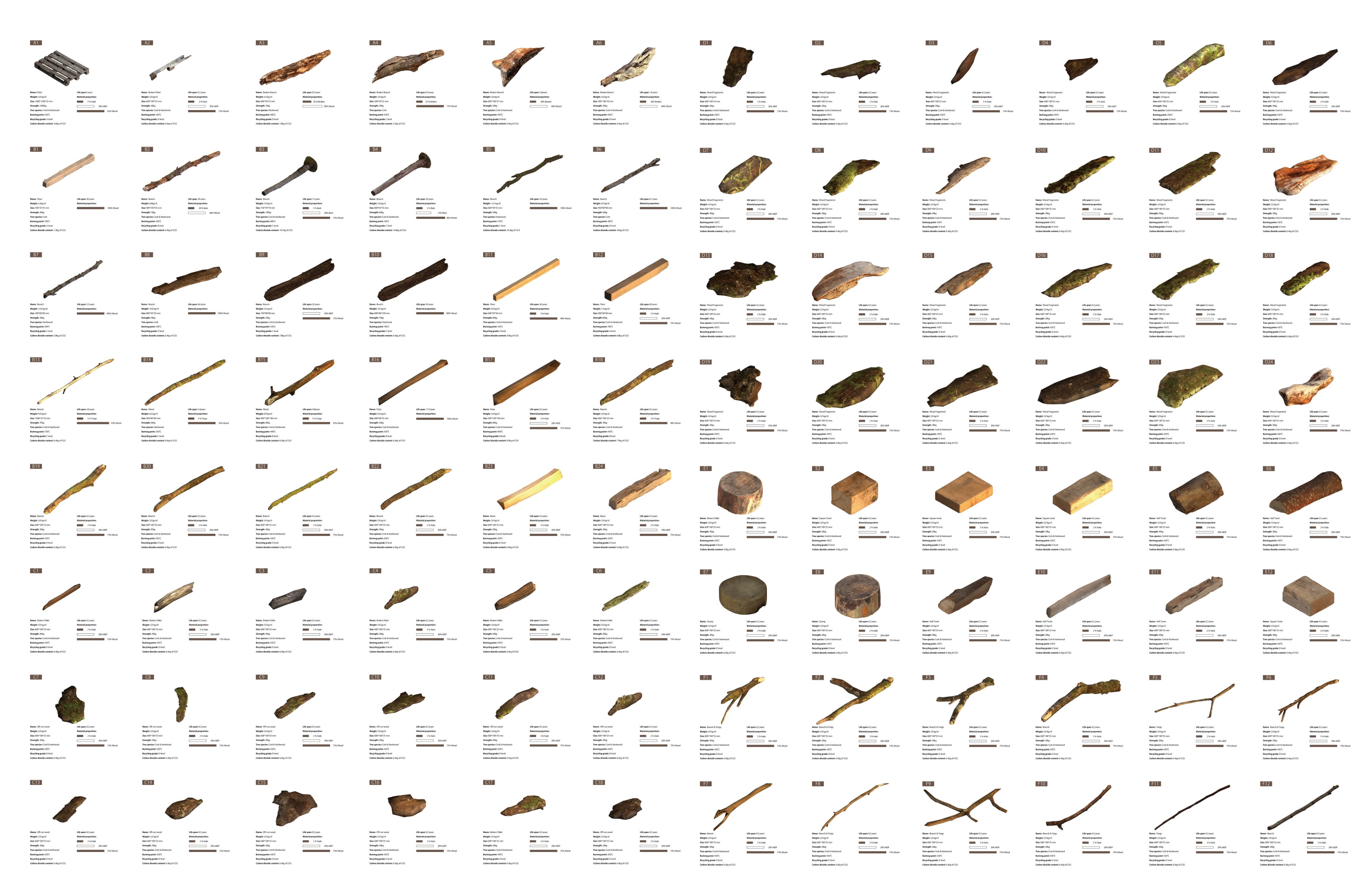

Wood Database Library

The digital model and its parameters was obtained through 3D scanning, improving the database.

Offcut Wood Aggregation

Offcut wood wall pattern.

Material Scanning and Database Formation

Material Scanning and Database Formation

Explores the process of wood collection and scanning at different scales, and forms a material database for subsequent calculations.

02

WFC - Furniture Aggregation

Restores the relationship between adjacent voxels of the model.

Chair Assembly

Shows off-cut wood assembly and completes the assembly of the chair with connecting pieces.

Chair - WFC Aggregation

Explores the possibilities of off-cut regular timber on the domestic scale.

Physical Chair Assembly Offcut Wood

Physical Chair Assembly Irregular Wood

03

Fragment Unit and its Assembly

From Fragment to Unit Assembly: Wall Stair Roof Floor

3D Model, Voxelisation, Aggregation, Assembly

Pavilion Assembly

Pavilion Assembly

04

Architectural Aggregation

A mix of irregular and regular timbers to create spaces of different sizes.

Interior Design

For an interior space, walls, ceilings, columns and furniture are used with a wide range of wood.

Discrete Representation of Modular School Units

Discrete Representation of Modular School Units

Architecture Application

Proposals for future timber-framed high-rise buildings, with different timbers used in the right places.
